[vc_row][vc_column][cz_gap height_tablet=”25px” height_mobile=”25px”][vc_column_text]Taking care of your trailer’s tires is essential. Mirage Trailers provides some tables that should assist you in keeping your tires in good working order.

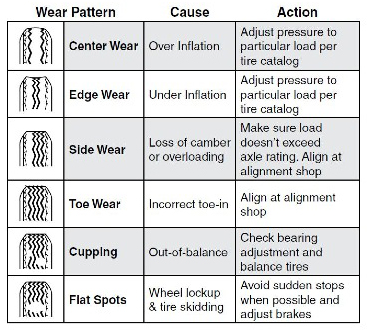

Tire Wear Chart[/vc_column_text][cz_image id=”cz_95496″ image=”3384″][/cz_image][vc_column_text]Wheel Torque
Bolt Pattern
5 on 4.5″
6 on 5.5″
8 on 6.5″
8 on 6.5″
Wheel Type
Single
Single
Single
Dual
Thread Size
.5″ – 20
.5″ – 20
.5″ – 20
.625″ – 18
Mounting Pilot
Stud
Stud
Stud
Hub
Nut Type
60° Cone
60° Cone
60° Cone
90° Cone w/ Clamp
Torque (ft lbs.)
90-120
90-120
90-120
175-225
[/vc_column_text][cz_image id=”cz_76781″ image=”3387″][/cz_image][vc_column_text]

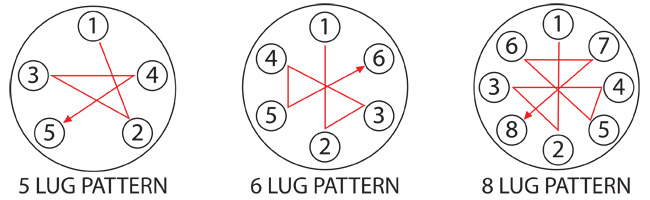

Use a calibrated torque wrench to complete the torque fastening process, applying the same criss-cross or star pattern. Re-torque periodically during the trailer’s initial towing and thereafter in accordance with the component supplier’s recommendations.
DON’TS:
- DON’T deviate from the component manufacturer’s recommendations regarding compatible components without a component engineering review.
- DON’T use adhesive products to maintain fastener tension.
- DON’T use lubricants or oils on threaded fasteners (studs or lugs) to make applying the torque easier unless assembly specifications require it.
- DON’T apply any additional paint on fastener contact surfaces (mounting surfaces/hub faces or studs).
Winter Storage
If your trailer is stored for an extended period of time over the winter, it is important that the trailer be prepared properly. Jack up the trailer and place jack stands under the trailer frame so that the weight is off the tires. Never jack up or place jack stands on the axle tube or on the equalizers.
