Xtreme / Teton Snow

What you’ll get:

  •  Flat Floor Design (No Interior Fender Boxes)
  • 72” Wide Partial-Sidewall Front Ramp (First in Industry)
  • NEW! Xtreme-Track Tie-Down System
  • Torsion Axles
  • 8” I-Beam Frame
  • ¾” Nupoly Laminate Floor w/ Fully Finished Interior
  • Roof and Sidewall Vents
Request a Quote Locate a Dealer

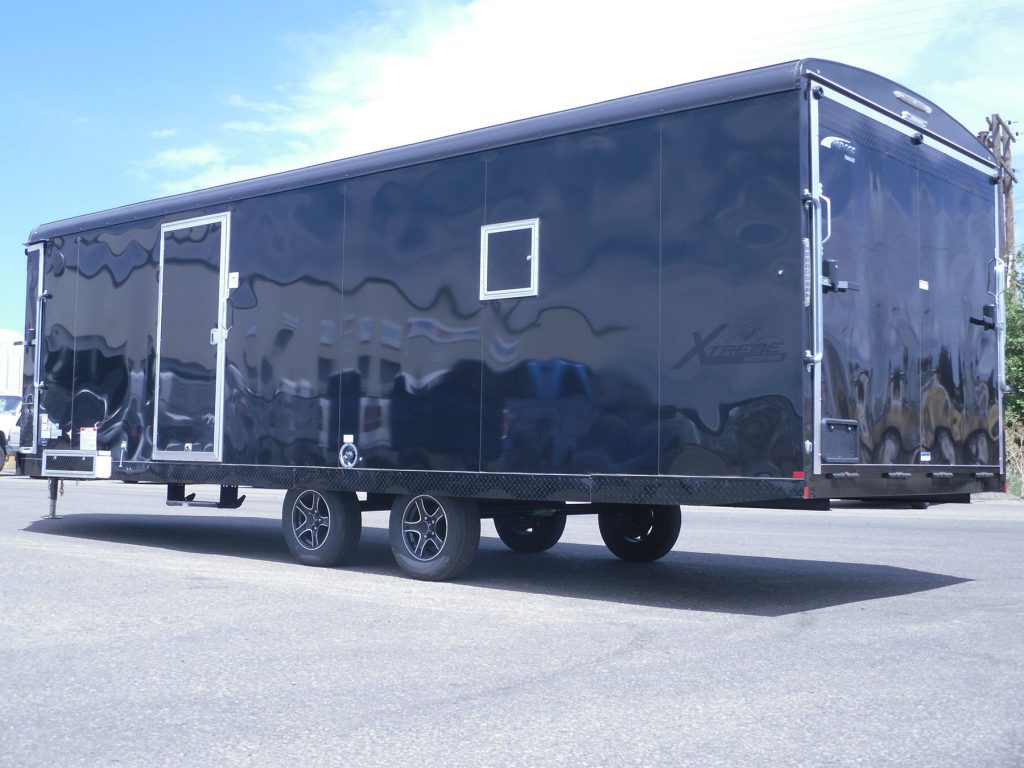

Xtreme snowmobile trailers are the first enclosed trailers with a partial sidewall front ramp, providing the widest approach angle in the industry. The ramp gives you ultra-low approach angle while loading or unloading. Climbing on and off your snowmobile to line it up with the ramp, moving other sleds out of the way, and fighting your trailer while unloading are virtually eliminated. The standard Nupoly laminate floor keeps water, carbides, and fuel from harming your trailer. Torsion axles provide unmatched load stability and reliability. With Xtreme you’ll have access to more options than with any other snowmobile trailer. A variety of packages, including our popular Blackout package, are available. They include custom graphics, aluminum wheels, ducted heating, and fuel systems. Tandem axle Xtreme Snows are available from 16 to 28 feet in length, making a formidable 4 place snowmobile trailer capable of hauling 4700 pounds of sleds and gear. Triple axle snowmobile trailers are available in lengths from 28 to 34 feet, giving you the capability of hauling 6 sleds, gear, and fuel up to 6900 pounds.

SNOW

Frame
Coupler2 5/16" Adjustable A-Frame
Jack5K Front Wind w/ Drop Leg
Tongue6 x 2" Tube
Frame8" Junior I-Beam
Crossmembers24" o/c Z-Form
Floor3/4" SuperStratum Laminate
Wall Studs16" o/c Tube
Side WallsAzdel Superlite (White)
V Nose4' Integrated (24' = 20' Box + 4' Nose)
Rear DoorsRamp w/ Assist & Traction Brackets
Entry Door32" Prehung (Roadside)
Front Ramp72"w x 68"h Ramp w/ Assist & Traction Brackets
Fuel Door(1) 15" Black Skin
Interior
Interior Trim12" ATP Bottom
Ceiling LinerWhite Vinyl w/ ABS Coving
Cargo ControlXtreme Track System w/ (4) Tie Downs
Roof
RoofGalvanized
Roof Bows16" o/c Tube
Roof CapFiberglass
Roof Cove.080 Extruded Aluminum
Exterior
Stoneguard24" ATP w/ ATP Hinge Cover
Vents(2) Roof and Sidewall
Exterior Trim6" ATP Bottom
Ramp Hinge CoverEdge Glide Hinge Cover (Both Ramps)
Wheels & Suspension
AxlesTorsion Brake
Wheels and TiresRadial Tires on Black Mod Wheels
FendersN/A (Flat Floor)
Fender BoxesN/A (Flat Floor)
Spare TireRadial Tire on Silver Mod Wheel
Spare MountUnder-chassis Winch
Electrical
Wiring7-Way w/ Jct. Box, Breakaway
Interior Lights(2) Low Pro LED Dome w/ Wall Switch
Exterior LightsAll LED
Load Lights(2) LED, (1) Front and (1) Rear Ramp
Penske Yellow
Victory Red
Champagne Beige
Forest Green
Schneider Orange
Charcoal Metallic
Silver
Indigo Blue
Dove Grey
Brandy Wine
White
Black

*Disclaimer: Colors shown are approximate. Actual colors will vary slightly from what is shown.
